Products Description：

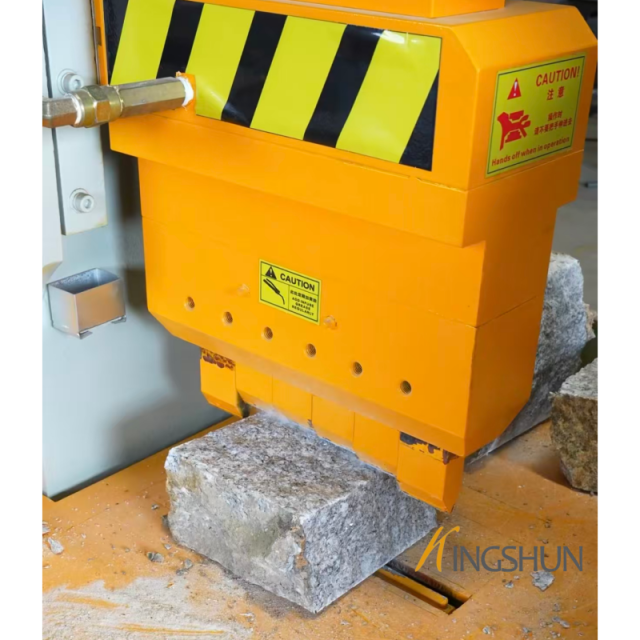

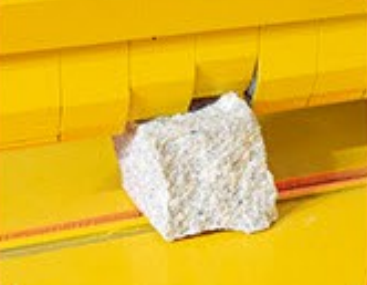

The Stone Splitting Machine KSD-90Y,with 60 tons of powerful hydraulic power, splits the stone into two cubes or blocks,for paving and wall decoration, such as sidewalks, facades and rustic walls. Adjustable splitting angle and depth to meet the needs of different sizes and shapes of stone to create a personalized architectural style.
Interested in learning more?
Fill out our quick inquiry form and we'll get back to you with all the details right away!
Products Details：
Y stands for hydraulic blades

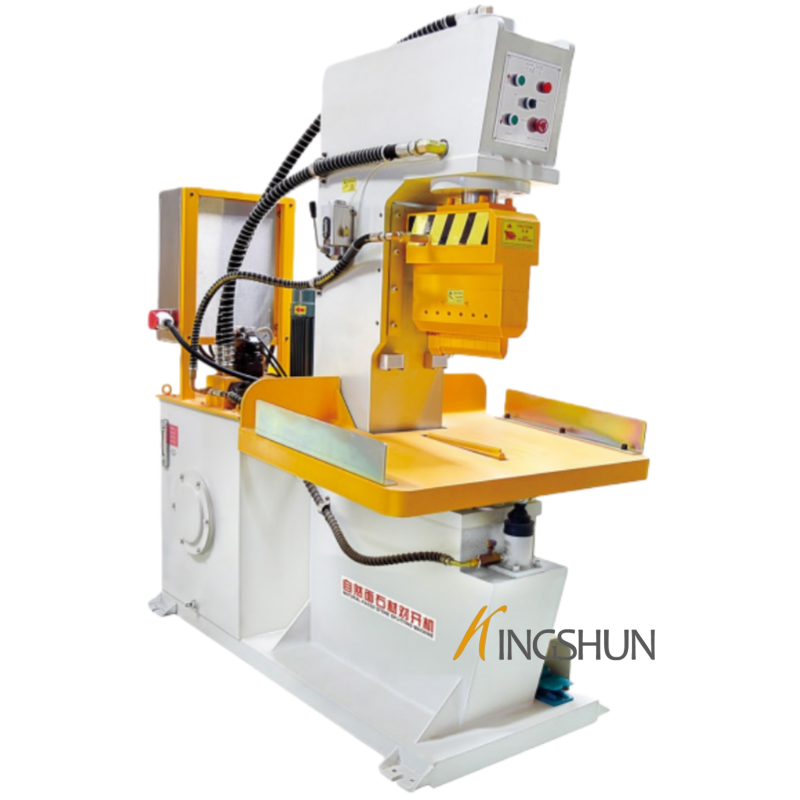

Stone Splitting Machine KSD-90Y Feature:
1.open frame machine model for easy maintenance
2.Made of sturdy cast iron and high-quality components to ensure stability while working.
3.Rapid lifting motion greatly improves work efficiency
4.Wedge chisel balance system provides maximum contact with the stone surface for a cleaner edge line
5.Heat-treated and hardened high carbon steel sparks produce superior splitting every time

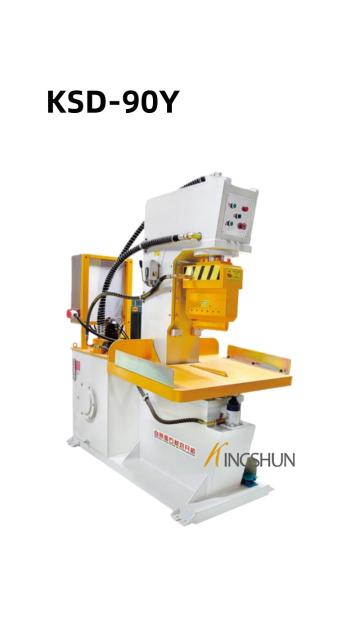

| Model | KSD-90Y |

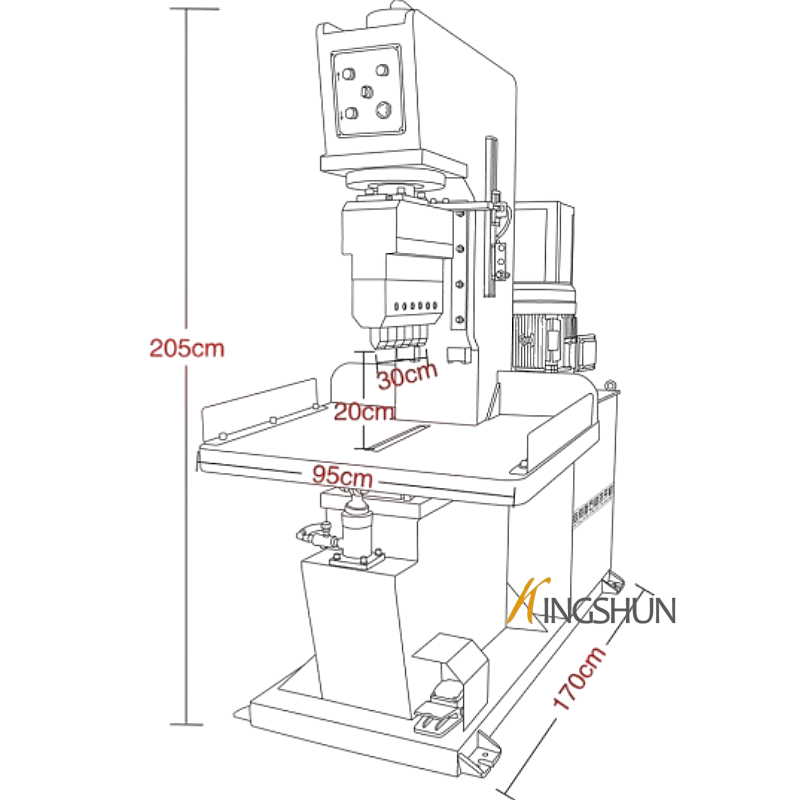

| Dimensions(L×W×H) | 170X95X205CM |
| Weight | 1.2T |
| Power | 7.5KW |
| Voltage | 380V |
| Frequency | 50Hz |
| Flow Rat | 40L |
| Pressure | 60T |
| Blade Feeding Speed | 12CM/S |
| Max Working Height | 20CM |
| Max Working Width | 30CM |
| Output/Hour | 45M2 |
| Hydraulic Oil Grade | 46# |
| Oil Tank Capacity | 200KG |
| Gross Weight | 1.3T |
FAQ:
Q：Are you a trader or manufacture?
A：- Yes, we are manufacturer. Our factory was started from 1987.
Q：How can you guarantee the quality?
A：- We employ experienced workers and follow CE standard and ISO90001requirements in the whole production processing.
Q：Can I be a distributor of OMC?
A：- Of course you can.
Q：What is your target customer?
A：- For both domestic and oversea customers and distributors.
Q：What's your target market?
A：-We focus on worldwide market including European, North America, South America,Latin America, Africa, Australia, Southeast Asia and the Middle East market.
Q: After l buy the machine, how l can install and operate it ?
A: Our machines are very simple, very easy to install and operate. We will send you instruction with the machine before shipment. Also videos about how to install or how to operate are available
Q: If machine got problem, what can you support it ?
A: Our machines are very durable, according to experience since 1987, our machines can work last 5-10years without any problem. As we select high-quality wear-resistant core components, with every detail reflecting our ultimate pursuit of durability and before machine leaves the factory, it must be inspected and tested several times. This ensures that every product delivered to our customers possesses stable and reliable excellent performance.
If it did get a problem, first we will discuss by email or call, if the parts broken during garantee
time, we will express the part as soon as confirmed. If neccesary, we also can send an engineer there for help.
