Product Advantages
Innovative Design and Structural Efficiency
The KSL-24z features a two-blade automatic system combined with a self-sliding z-axis mechanism, offering stable and continuous stone feeding without manual repositioning. Its hydraulic drive grants precise control over splitting force, while the compact frame permits easy installation and maintenance in varied factory layouts. This design addresses multiple processing requirements, positioning the machine as a versatile tool among landscaping stone splitter options. The integration of an automatic conveyor feed further enhances workflow coherence, reducing bottlenecks commonly seen in manual stone handling processes.
Operational Reliability and User-Centered Performance
Performance-wise, the KSL-24z stands out by delivering consistent output quality under continuous operational loads. The machine requires minimal supervision due to automated mechanisms that regulate stone feeding and blade operation. User interfaces are streamlined for convenient adjustments, lowering training demands for operators. Additionally, robust hydraulic components and standard-compliant manufacturing methods ensure extended service life and reduce downtime, appealing to buyers prioritizing long-term return on investment when selecting a paving stone splitting machine or inquiries to a reputable stone splitting machine supplier.
Products Description:
Cube stone splitting machine KSL-24z has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone.Natural stone splitting machine designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Stone splitting machine is an efficient machine for producing cubic paving stone and stone veneer panels.
Interested in learning more?
Fill out our quick inquiry form and we'll get back to you with all the details right away!
Products Details:
Specification：
|
Model |
KSL-24z |
|

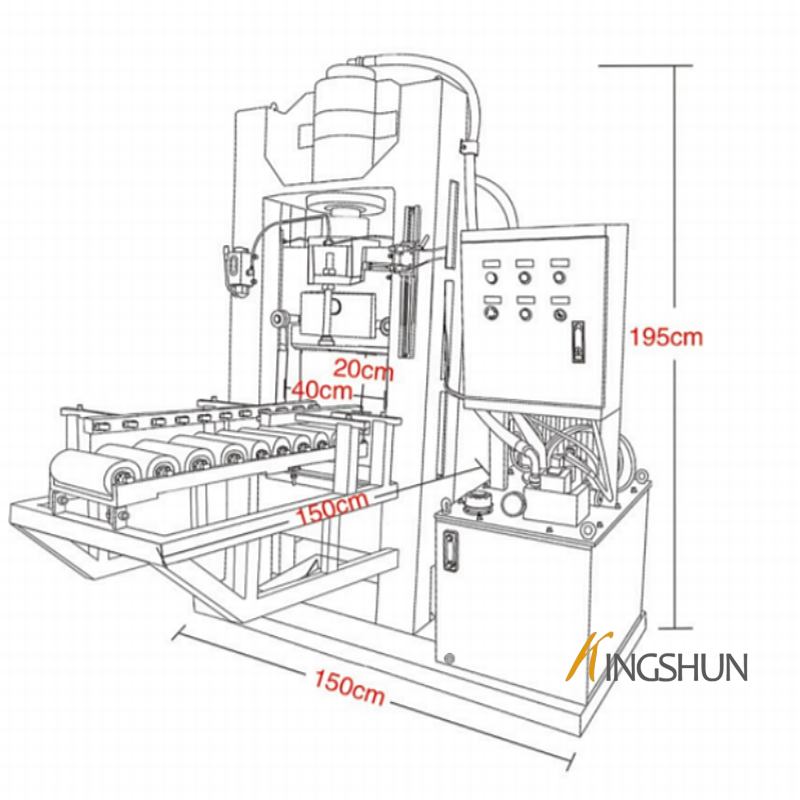

Dimensions(L×W×H) |
150X150X195CM |
|
Weight |
0.98T |
|
Power |
4KW |
|
Voltage |
380V |
|
Frequency |
50Hz |
|
Flow Rate |
14L |
|
Pressure |
40T |
|
Blade Feeding Speed |
3CM/S |
|
Max Working Height |
20CM |
|
Max Working Width |
40CM |
|
Output/Hour |
50M2 |
|
Hydraulic Oil Grade |
46# |
|
Oil Tank Capacity |
78KG |
|
Gross Weight |
1T |
Quarry and Stone Fabrication Facilities
In quarry environments, the KSL-24z is deployed to split elongated stone strips into uniform cubic blocks efficiently. Its hydraulic system’s pressure capacity enables processing of dense materials such as granite with precision, supporting high-volume production demands. By automating stone feeding and splitting, this hydraulic stone splitter manufacturer’s product reduces labor intensity and enhances throughput. Integration with upstream sawing equipment and downstream material handling systems facilitates smooth workflow continuity, making it an integral component in large-scale stone fabrication facilities.
Construction Material Production Lines
The KSL-24z plays a critical role in construction materials manufacturing, converting raw stone slices into standardized paving stones and veneer panels with antique textures. Its automatic two-blade cutting system meets industry requirements for dimensional accuracy and material consistency. This landscaping stone splitter supports compliance with quality standards and optimizes feed rates for assembly line integration. As part of a larger process chain, it enables manufacturers to achieve reliable and repeatable output suitable for urban landscaping projects and architectural applications.
FAQ:
Q：Are you a trader or manufacture?
A：- Yes, we are manufacturer. Our factory was started from 1987.
Q：How can you guarantee the quality?
A：- We employ experienced workers and follow CE standard and ISO90001requirements in the whole production processing.
Q：Can I be a distributor of OMC?
A：- Of course you can.
Q：What is your target customer?
A：- For both domestic and oversea customers and distributors.
Q：What's your target market?
A：-We focus on worldwide market including European, North America, South America,Latin America, Africa, Australia, Southeast Asia and the Middle East market.
Q: After l buy the machine, how l can install and operate it ?
A: Our machines are very simple, very easy to install and operate. We will send you instruction with the machine before shipment. Also videos about how to install or how to operate are available
Q: If machine got problem, what can you support it ?
A: Our machines are very durable, according to experience since 1987, our machines can work last 5-10years without any problem. As we select high-quality wear-resistant core components, with every detail reflecting our ultimate pursuit of durability and before machine leaves the factory, it must be inspected and tested several times. This ensures that every product delivered to our customers possesses stable and reliable excellent performance.
If it did get a problem, first we will discuss by email or call, if the parts broken during garantee
time, we will express the part as soon as confirmed. If neccesary, we also can send an engineer there for help.
Q: What types of natural stone can the KSL-24z stone splitting machine process?
A: Our stone splitting machine supplier guarantees that the KSL-24z efficiently processes various natural stones such as granite and marble. It splits long stone strips into uniform cubic blocks or veneer panels, meeting high standards for paving stone production and landscaping stone splitter applications.
Q: Can the KSL-24z machine be customized to fit specific production requirements?
A: We offer customization options to adapt the KSL-24z for your production line. Whether you need adjustments in blade size or hydraulic pressure, our team tailors the hydraulic stone splitter manufacturer capabilities to ensure optimal output and precise stone cutting suited to your business needs.
Q: How easy is it to install and maintain the KSL-24z automatic two-blade stone splitting machine?
A: We design the KSL-24z for straightforward installation and operation. It comes with detailed manuals and instructional videos. Routine maintenance involves checking hydraulic oil and blade conditions, which we support via remote assistance, ensuring minimal downtime for your paving stone splitting machine.
Q: What logistics and after-sales support do you provide for international buyers?
A: As a dedicated stone splitting machine supplier, we offer reliable shipping and responsive after-sales support worldwide. During warranty periods, replacement parts are promptly dispatched, and our technical team is available for troubleshooting via phone or email to ensure continuous production for your landscaping stone splitter needs.
